Understanding Vertical Clearances and Charted Datums
When evaluating a waterfront home along the Florida Gulf Coast, assessing navigability requires a clear understanding of vertical bridge datums. NOAA nautical charts and Coast Pilot publications report vertical bridge and overhead cable clearances in feet above Mean High Water (MHW) unless otherwise specified.
Because charted bridge clearances represent the vertical gap available at high tide, lower water levels provide additional clearance. Conversely, meteorological events, seasonal high tides, and sustained wind setup can raise water levels above MHW, significantly reducing the available overhead space beneath fixed spans.
Available Overhead Clearance = Published MHW Clearance + (MHW - Current Tide Height) - Safety Buffer Safe Transit Condition: Available Overhead Clearance > Vessel True Air Draft
For drawbridges, the published vertical clearance reflects the structure in its closed position. While vertical-lift bridges publish open clearances, fixed spans impose permanent height ceilings on every vessel navigating the waterway.
Calculating True Air Draft Beyond Factory Specs

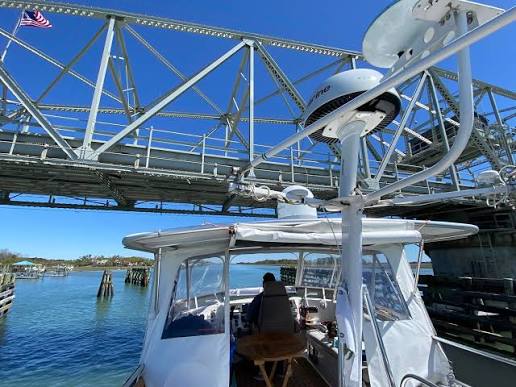

A vessel's air draft is the vertical distance measured from the waterline to its highest non-removable fixed point. Relying solely on manufacturer specifications often leads to bridge strikes because standard specification sheets frequently exclude aftermarket navigation equipment, radomes, and communication gear.
Essential Air Draft Components to Measure
- Waterline to hardtop or flybridge arch baseline height
- Open-array and closed-dome radar units mounted on pedestals
- VHF, AIS, and cellular antennas in upright and folded orientations
- Hardtop-mounted searchlights, thermal cameras, and anchor lights
- Outriggers, rod holders, and tower upper-station controls
Bascule Bridges, Inclined Spans, and Overhead Cables
Navigating through movable spans involves unique structural considerations. For bascule bridges whose leaves do not open to a completely vertical position, unlimited overhead clearance is not available across the full horizontal channel width due to the inward inclination of the drawspans over the water.
Overhead power and utility lines present an additional vertical hazard. On official nautical charts, clearances charted in black text represent the lowest physical wires at MHW as authorized by the U.S. Army Corps of Engineers.
Passage Planning Across Sarasota and Tampa Bay Waters
The regional waterway network extends north from Venice Inlet across Blackburn Bay, Dryman Bay, Little Sarasota Bay, Roberts Bay, Sarasota Bay, and Anna Maria Sound into lower Tampa Bay. Access to the Gulf of Mexico is provided through key inlets including Venice Inlet, Big Sarasota Pass, and New Pass.
Passage planning from an inland canal dock requires auditing every bridge along the entire transit route. Real-time channel discrepancies, construction activities, and temporary bridge clearance reductions are published in the U.S. Coast Guard Local Notices to Mariners (LNM).
| Waterway Segment | Key Inlets & Channels | Overhead Verification Factors |
|---|---|---|
| Venice to Roberts Bay | Venice Inlet, Lyons Bay | Canal fixed bridges, utility cables, manatee caution zones |
| Sarasota Bay | Big Sarasota Pass, New Pass | Inlet bascule bridges, fixed causeways, tidal variations |
| Anna Maria Sound & Tampa Bay | Anna Maria Channel, Cut Channels | Regional construction notices, USCG Local Notices to Mariners |
Due Diligence Protocol for Canal Home Buyers
While major federal and state bridges are cataloged on nautical charts, minor municipal spans and residential canal bridges across Sarasota, Bradenton, Venice, and St. Petersburg are frequently omitted from federal navigation guides. Coast Guard Guide Clearances serve as non-regulatory benchmarks for bridge permitting under 33 CFR Subchapter J, but vertical allowances vary case-by-case.
Michael's Expert Takeaways
Related Seaside Resources
See the yacht makes and models we broker when you are sizing the boat before the dock. See the Dock-to-Deck assessment where we check depth, clearance, and lift capacity against a specific vessel. See the Coastal Insights library for the rest of the series.
Frequently asked questions
What datum is used for bridge clearances on Florida Gulf Coast charts?
Vertical clearances on NOAA charts and Coast Pilot publications are given in feet above Mean High Water (MHW), meaning clearances increase at lower tidal stages and decrease during higher tides or storm surges.
Do bascule bridges provide unlimited vertical clearance when open?
Not always across the full width. If the bridge leaves do not open to a complete 90-degree vertical position, the span's inward angle over the channel limits overhead clearance near the bridge fenders.
How can I verify bridge heights for residential canals not shown on NOAA charts?
Work with a licensed yacht broker to verify channel access, review local homeowners association rules, check municipal engineering records, and physically test the route with a vessel during your contract inspection period.
